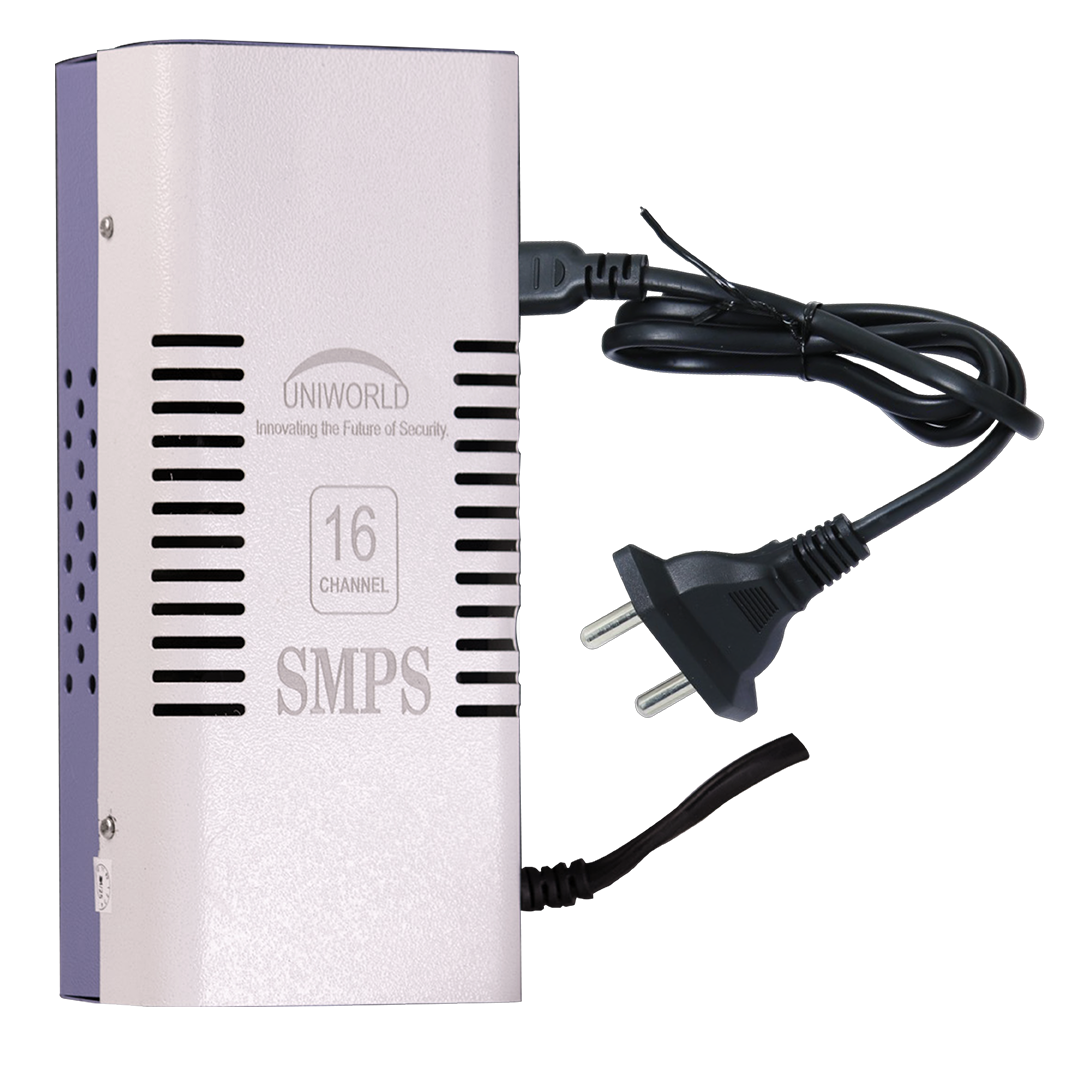

UV-PSW-1601M

Single Output 16 Ch Power Supply

Rating:

Single Output 16 Ch Power Supply

( UV-PSW-1601M )

With Cable Compensation Switch
LED Indicator for Each Channel
Built-in EMI Filter to Nullify Interference
Cooling by Free Air Convection
Built-in Constant Current Limiting Circuit
100% Full Load Built-in test
Plastic Housing

Price: RS 0

RS 0.00

Discount: RS 0

Quantity:

- +

DATASHEET

Quantity:

- +

Specification . Request For Information

UV-PSW-1601M

Input voltage 150~285V AC
Output voltage 12V DC
Current Range 0~5A
Rated Power 60W
Ripple & Noise (max.) 120mVp-p
Voltage Adj. Range 11.4~12.6V
Line Regulation ±1.0%
Voltage Tolerance n/a
Setup Rise time 2500ms, 15ms at full load
Hold Up Time (Typ.) 20ms at full load
Load Regulation ±5.0%
Temperature coefficient ±0.03%/°C (0~50°C)
Frequency Range 47~63HZ
Efficiency (Typ.) 86%
AC Current (Typ.) 1A/220VAC
Inrush Current (Typ.) Cold Start: 40A/220V AC
Leakage Current <2mA / 240VAC
Over Load 110~200% rated output power, Protection type: Shut down O/P, recovers automatically
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500V DC / 25°C/ 70% RH
Working Humidity 20 ~ 90% RH Non-condensing
Vibration 10 ~ 500Hz, 3G 10min./1 cycle, 60min. each along X, Y, Z
Dimension 144(L) x 109.5(W) x 33mm(H)
Store temperature -20 ~ +85°C
Working temperature -20 ~ +45°C
Withstand Voltage I/P-O/P: 1.5KVAC I/ P-FG: 1.5KVAC O/P-FG: 0.5KVAC
